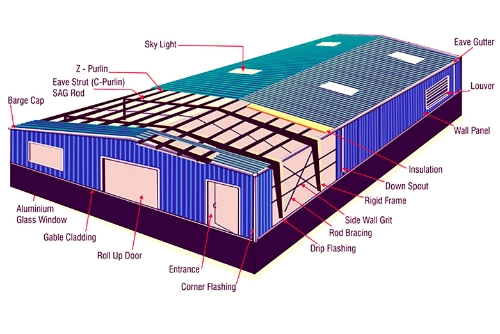

Pre-Engineered Buildings
Pre-Engineered Steel Buildings use a combination of built-up sections, hot rolled sections and cold formed elements which provide the basic steel frame work with a choice of single skin sheeting with added insulation or insulated sandwich panels for roofing and wall cladding.
Advantages
- Low cost compared to RCC structures
- Superior Product quality
- Fast construction
- Architectural flexibility
- Low maintenance cost
- Large spans without intermediate columns

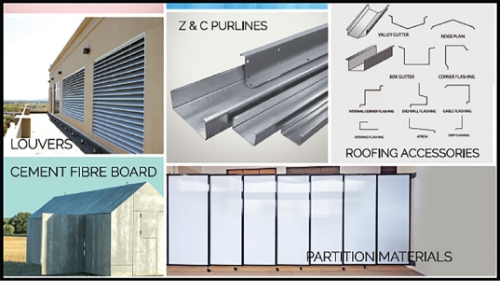

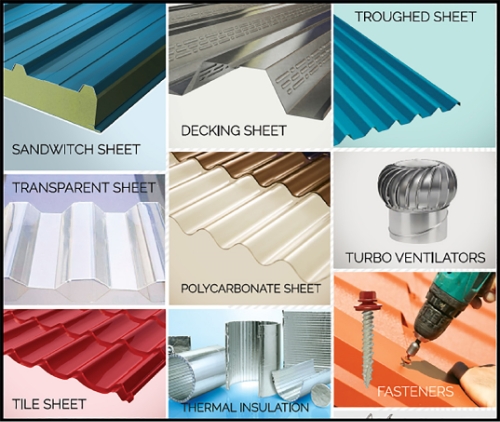

Materials Used

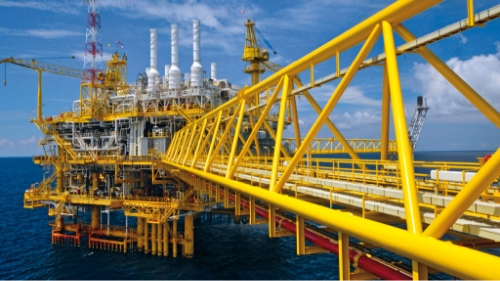

Heavy Steel Structures
Our Company is specialised in Fabrication and erection of heavy structures such as Piling gantries, Erection gantries, Silos, Pipe lines, Walkways etc using hot rolled and cold form sections. We have a specialised team capable of doing welding in all positions.
Prefabricated Tubular Steel Structure
Structures with hollow sections are more economical and stronger than conventional rolled sections.
Large radius of gyration compared to unit weight of a member, the tube has the largest possible value which makes the tubular sections most cost effective.
The advantages of tubular sections are low maintenance, speedy construction, flexible layout, inherent resistance to earthquake etc
Advantages
- The steel frame construction is more suitable to withstand lateral loads caused by wind or earthquake.
- Steel buildings have 20 to 30% reduction in construction time relative to site-intensive construction depending on scale of project.
- Site management costs can be reduced by 20 to 30% which can lead to a 3 to 4% saving in terms of overall building cost.
- Steel construction is less than half the weight of an equivalent concrete structure, which is equivalent to a 30% reduction in overall foundation loads.
- Long span steel construction provides more flexible use of space, which depends on the function of the building and its future uses.

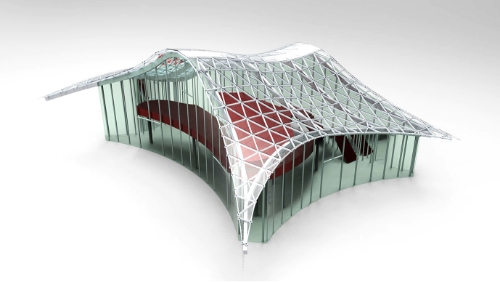

Space Frames
A Space Frame or Space Structure is a truss like, light weight rigid structure constructed from interlocking struts in a geometric pattern. Space frames usually utilize a multidirectional span, and are often used to accomplish long spans (up to 100 m) with few supports.
Advantages
- Large span at lower height
- Freedom of design
- High load bearing capacity
- Highly cost effective compared to conventional truss
